Fire Doors & Frames

Fire Doors & Frames

Green Hollow Metal products are designed on "SDI", "NFPA", technological data in the interest of improving the safety for the public benefit.

Read More
Steel Door Frame Elevation

Steel Door Frame Elevation

This specification applies to standard steel frames as shown on the plan and door schedules and as manufactured by Green Hollow Metal Doors L.L.C

Read More
Typical Profile

Typical Profile

Read More
Typical Elevations

Typical Elevations

GHM-100 Series: Pre-foamed Honey Comb bonded to both Door skins using a heated power press thus ensuring maximum adhesion and flat warp and distortion free panel.

Read More
Our Product Range
HOLLOW METAL DOORS AND FRAMES (HMO):
Sr.No. Series Product
1 HMD Steel Doors Non Fire Rated
2 HMD (FR) Steel Doors Fire Rated
3 HMD AC Sound Proof (Acoustic) Doors and Frames
4 HMD BU Bullet Proof Doors and Frames
5 HMD XR X-ray PrnaCDonTs and Frames
6 HMD GA Gas Ti ht Doors and Frames (Air Tight)
7 HMDTR Transom and Sidelite Frames
8 HMD DE Detention (Cell Doors) Doors and Frames
9 HMD EM Embossed Steel Doors and Frames
10 HMD DU Dutch Doors and Frames
11 HMD AC Access Doors and Frames
12 HMDWI Window Frames and security screens.
13 HMD PR Prepainted Doors and Frames (Low Cost Doors)
14 HMD SS Stainless Steel Doors and Frames
15 HMD TO Toilet Partitions
16 HMD SE Seamless Doors and Frames
17 HMD FO Folding Doors
SPECIAL USAGE DOORS (SUD):
Sr.No. Product
1 Security Doors and Frames
2 Blast Proof Doors and Frames (Blast Resistance)
3 Sliding Doors
4 Sliding Gates
5 Oversize (Panelized Doors) with Pass Doors
6 Security Wall System and Ceilin s (Metal Partitions)
7 Fire Rated Sliding Doors
8 Hanger Doors
9 Fiberglass Doors and Frames (Corrosion Resistance Doors)
10 Roof Hatches

Breaks
Fire & Smoke Path
Breaks Green Hollow Metal Steel Doors are design based on SDI and NFPA technological data in the interest of improving
the safety for the public benefits.
Today as per the BOCA International standards, building safety is a demandable choice by the public, in case of
fire accidents. Green Hollow Metal fire rated Steel Doors are produced with the toughest UL and SDI standards
to prevent any spread of smoke fire breakup. For more details about Green Hollow Metal UL listed products
contact on Tel: +971 4 2963321

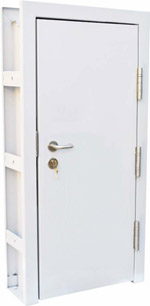

Fire Rated Steel Doors
GENERAL
Scope:
This specification applies to standard steel doors as shown on the plan and door schedules and as manufactured by Green Hollow Metal Doors L.L.C
Quality Assurance:
Green Hollow Metal will provide doors in compliance with ANSI/SDI-100 requirements. Green Hollow Metal will provide fire rated doors labeled and listed by Underwriters Laboratories Inc. (or) warringtonfire mideast.
PRODUCT
Door Construction:
45mm (13/4") thick full flush construction with the details confirming to SDI-111A-EDGE considered. Manufactured from cold rolled steel sheets to ASTM A366 or from galvanized steel to ASTM A526. Available in nominal 1.2mm (18ga.) or 1.5mm (16ga.). Vertical edges are interlocked. 1.5mm (16ga.) deep end channels at top and bottom of door for lasting integrity. Hardware reinforcing in accordance to ANSI, SDI, NFPA standards requirements. Tested according to UL10(B) and labelled up to 3 hours. Available with wide range of glass light and louver preparations. Fire rated, Labeled: Available in sizes up to 4'x8' single and 8'x8' double. larger sizes are also available with oversize certification.
Fire Rated Steel Doors
Fire Door Types - DF
FIRE DOOR TYPES - DF
Single Door
GHM-100 Series - Honeycomb core door
GHM-200 Series - Polystryene core door
GHM-300 Series - Stiffened Door with fiberglass insulation
GHM-400 Series - Stiffened Door with Rock wool insulation
GHM-500 Series - Polyurethane core door
GHMSS-100 Series - Stainless steel hollow metal honeycomb core door
GHMSS-200 Series - Stainless steel hollow metal door
GHMSS-300 Series - Stainless steel hollow metal door with fiberglass insulation
GHMSS-400 Series - Stainless steel hollow metal door with fiberglass insulation
GHMSS-500 Series - Stainless steel hollow metal door Polyurethane door
GHME-100 Series - Embossed steel doors-honeycomb
GHME-200 Series - Embossed steel doors (Fire rated) honeycomb

Double Door
GHMSS-100 Series - Stainless steel hollow metal honeycomb core door
GHMSS-200 Series - Stainless steel hollow metal door
GHMSS-300 Series - Stainless steel hollow metal door with fiberglass insulation
GHMSS-400 Series - Stainless steel hollow metal door with fiberglass insulation
GHMSS-500 Series - Stainless steel hollow metal door Polyurethane door

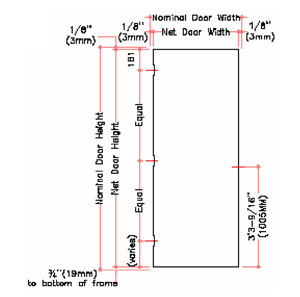

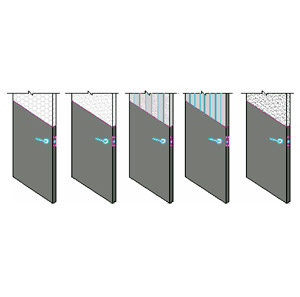

TYPICAL DOOR TYPES
Typical Door Types Typical Door Types Typical Door Types

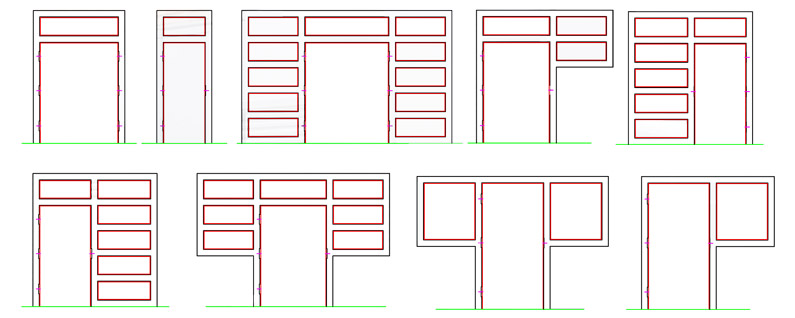

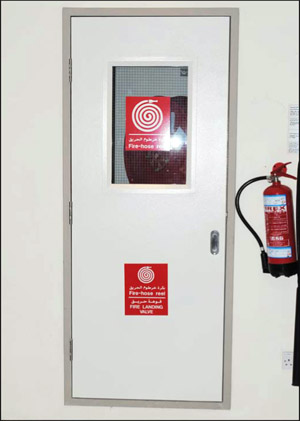

TYPICAL ELEVATIONS
Typical Elevations Typical Elevations Typical Elevations

Typical Elevations

GHM-100 Series: Pre-foamed Honey Comb bonded to both Door skins using a heated power press thus ensuring maximum adhesion and flat warp and distortion free panel.
GHM-200 Series: Pre-foamed polystyrene slab of 18Kg/ m3.(1.12pcf) density, filling the inside of the door and secured to face skins with adhesive.
GHM-300 Series: Constructed using 0.8mm (22 gauge) thick vertical steel stiffeners welded to each face of the door at 100mm centers and spaced 190mm centers. Voids
filled with fiberglass insulation.

GHM-400 Series: Constructed using 0.8mm (22 gauge) thick vertical steel stiffeners welded to each face of the door at 100mm centers and spaced 190mm centers.
Voids are filled with rock wool insulation.

GHM-500 Series: Foamed-in-place polyurethane core exceeding 35Kg/m3.(2.18 pcf) compressed density, entirely filling the inside of the door.
FIRE RATED STEEL FRAME
1.0 GENERAL
Scope:
This specification applies to standard steel frames as shown on the plan and door schedules and as manufactured by Green Hollow Metal Doors L.L.C
Quality Assurance:
Green Hollow Metal will provide frames in compliance with ANSI/SDI-100 requirements. Green Hollow Metal will provide fire rated frames labeled and listed by UL (or) Warringtonfire-mideast.
Products
Frame Construction:
Frames are constructed of 1.2mm (18 gauge) or 1.5mm (16 gauge) or 2mm (14 gauge) or 2.5mm (12 gauge) commercial quality cold rolled steel ASTM A366 or hot dip galvanized steel sheet ASTM A526, G90 for doors of either 45mm (13/4") or 35mm (13/8") thickness with the details conforming to SDI-111A. All bends shall be formed with a true sharp radii.

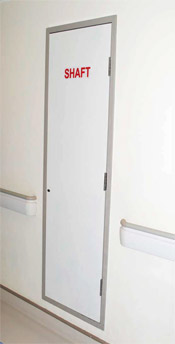

Firce Rated Steel Frame

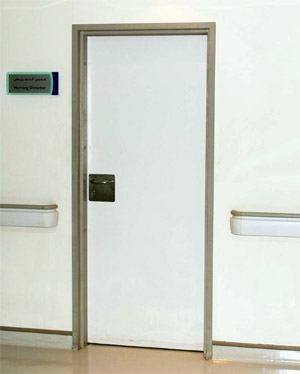

STEEL DOOR FRAME ELEVATION
Steel Door Frame Elevation Steel Door Frame Elevation

TYPICAL PROFILE DETAIL
Typical Profile Detail Typical Profile Detail
Typical Profile Detail

TYPICAL DETAILS

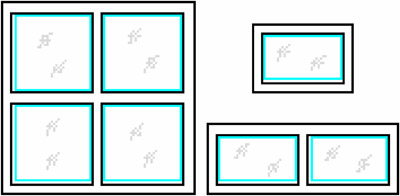

TRANSOM FRAMES
Typical Transom Frames
TRANSOM FRAMES
Typical Transom Frames

TYPICAL ELEVATIONS
Typical Elevations

Transom side light frames may be of 1.5mm. (16ga.) or 20.0mm. (14ga.) Steel Sheet.

Maximum Frame size:
3650 X 3048mm. or 3048x 3650mm. for masonry
Wall installations and
3650x3048mm. for dry wall installations.
Maximum Door opening Size:
1220x2438mm. for single,
2438x2438mm. for pair.
jamb Depth:
120mm.Min. thru 323mm. Max.
(4 3/4" thru 12 3/4')
maximum throat Opening:
114mm. For masonay wall; 92mm. for dry wall
